Our Range of Solar Roof Vents and Roof Ventilators
Want to learn more about our products & how they work? Read up on our Home Ventilation page.
Solar Whiz provides 2 residential solar roof vents. These are each suited to particular sizes of homes or rooms! The solar roof vents we provide are:
- The SW-AU-R-28 solar roof vent,
- The SW-AU-R-40 solar roof vent.
Solar Roof Vent for Home – Improve Indoor Comfort

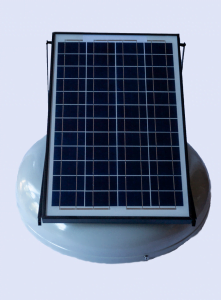

SW-AU-R-28
Equivalent to 17 whirlybirds.
The Solar Whiz SW-AU-R-28 solar exhaust fan is our larger mid-range unit. It is best suited towards ventilating larger homes up to 180 square metres or are looking for extra roof ventilation power and improved results in home cooling.
TOPIC |
SPECIFICATIONS |
Model |
SW-AU-R-28 |
Capacity |
1700 Cubic Metres per Hour (m³/h) |
PV Wattage |
28 Watt |
Fan Decibel |
<45 Decibels (dBA) |
Dimensions |
560mm × 360mm × 330mm |
Weight |
11kg |
Night Operations |
Yes, with Constant Current Module (add-on) |

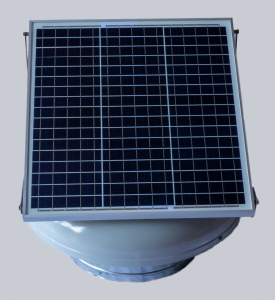

SW-AU-R-40
Equivalent to 23 whirlybirds.
The Solar Whiz SW-AU-R-40 solar exhaust fan is our largest domestic ventilator. It is our most popular and powerful unit, suitable for homes up to or beyond 250 square metres. It also suits smaller commercial applications such as warehouses, factories, stables, offices, etc. If you need to move a large volume of air very quickly, the SW-AU-R-40 is your answer.
TOPIC |
SPECIFICATIONS |
Model |
SW-AU-R-40 |
Capacity |
2300 Cubic Metres per Hour (m³/h) |
PV Wattage |
40 Watt |
Fan Decibel |
<60 Decibels (dBA) |
Dimensions |
560mm × 360mm × 330mm |
Weight |
14kg |
Night Operations |
Yes, with Constant Current Module (add-on) |
Our solar roof vents and solar exhaust fans rely on RAF (Real Air Flow), a measurement system that determines the actual airflow capacity of a roof ventilator. Many roof whirlybirds and roof ventilators only state their Theoretical Capacity (TC), such as a standard roof whirlybird providing near to 100m³/h under optimal conditions. We test our solar roof vents with all the components attached, not just the power of the solar roof vent itself.
Our recommendations for ventilating standard-pitched homes are based on 10 years of experience in the Australian roof ventilation market. Many of our competitors recommend less capacity. Theoretically, these lower airflow capacity requirements are correct but don’t actually result in the desired outcome – because of severe restrictions for the necessary replacement air.
At GES we carry out our own testing, whilst it appears that our competitors rely on the manufacturers’ specifications. We would encourage anyone considering a competitor to ask them about the test procedure to verify the airflow.
Interested in reading into the specifications of our solar roof vents? Check out our product list below, and click on them to discover how Solar Whiz works tirelessly to keep you cool!
Have a read of our state-specific Cost of Operations documents to see how Solar Whiz helps you keep cool while saving money!

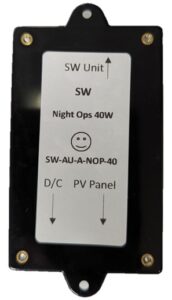

Night Operations Kit
The N-OPS kit (Also known as the Constant Current Module) is a useful addition that allows a Solar Whiz installation to be run during low-light hours such as heavily overcast days, or night-time. This enables your Solar Whiz to run on mains electricity once the solar charge has depleted.
TOPIC |
SPECIFICATIONS |
Model |
ELEC124D |
Components |
Constant Current Module 24V 3A Power Supply |
Weight |
<1 kg |

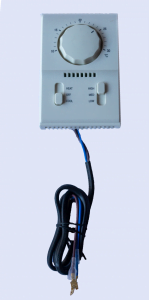

Adjustable Thermostat
Our Adjustable Thermostat is our most popular accessory. It provides complete control over when your Solar Whiz operates. During periods of exceptional heat, this could ensure Solar Whiz begins operations earlier, preventing heat buildup. Alternatively, you can deactivate the system to retain heat in winter.
TOPIC |
SPECIFICATIONS |
Model |
SW1112 |
Voltage |
12-240V |
Weight |
<1 kg |
Suitable for all domestic units
Solar Whiz has an entire range of accessories and components that help you to enhance and personalise your roof ventilation system. We encourage you to read for further information!
With 25% to 35% of heat leaking into your home through your ceiling, it’s important to take roof ventilation seriously. Temperatures on your roof easily reach as high as 70°C in Summer. This heat doesn’t go anywhere if you can’t extract it!
On top of heat management, Solar Whiz assists with:
- Moisture extraction
- Mould and fungi prevention
- Improve Air conditioner efficiency
- Exhaust control for steam or smoke
- Fumes Extraction
Interested in finding out more about Solar Whiz? Check out our Solar Whiz videos and Whirlybird guide to find out why Solar Whiz trumps a whirlybird.
1. Standard roof ventilation installation with eave vents
Solar Whiz achieves optimal ventilation by pulling in cooler outdoor air through your roof space. The animation on the left illustrates a typical roof ventilation arrangement, where a Solar Whiz roof ventilator draws replacement air through eave vents.
This process effectively refreshes the roof space and helps reduce heat buildup.
2. Heat removal from the interior via ceiling vents
Solar Whiz efficiently extracts heat from rooms through ceiling vents. The animation on the left demonstrates how a Solar Whiz roof ventilator draws replacement air from rooms via ceiling vents, ensuring effective roof space ventilation and heat extraction.
Ceiling vents are particularly beneficial for double-storey homes, especially in upstairs rooms prone to heat buildup and limited fresh outside air. With no need for tubing or complex installation, heat extraction via interior vents is straightforward.
Utilising a solar exhaust fan ensures upstairs rooms remain comfortable and cool on hot days, enhancing year-round enjoyment of these spaces.
3. Direct Heat Extraction and Removal via Ducts
An alternate method for Solar Whiz to facilitate ventilation is by actively channeling hot air through your roof via ducting. The animation on the left demonstrates the extraction of heat with a Solar Whiz heat extractor/solar vent, effectively removing hot air directly from rooms through ceiling vents.
This process not only contributes to energy-efficient home cooling but also aids in home ventilation, playing a role in preventing mould growth.
Our Domestic Solar Roof Vents Features
Bushfire-rated units available
Our bushfire-rated solar vents are meticulously designed to fully comply with regulations for buildings in bushfire-prone areas, ensuring safety and peace of mind in such environments.
SS316 Units Available for Coastal Settings or Other Corrosive Environments.
These 316 stainless steel units are specially designed for coastal and corrosive environments, they provide strong resistance and durability in challenging conditions, ensuring long-lasting performance and protection.
23x more powerful than a whirlybird
The Australian made Solar Whiz moves stale air up to 2300 m3 per hour, providing improved air circulation and ventilation in your space, and outperforming other ventilation systems on the market.
Combined digital thermostat and hygrostat (add-on)
Solar Whiz now offers a combined digital thermostat and hygrostat which is great in conjunction with our night op for addressing condensation and moisture issues in the roof or the house at night. You can now also have a digital thermostat if you only need the Solar Whiz unit to operate based on temperatures in the house or roof.
Improves indoor air quality
The Solar Whiz improves indoor air quality by removing stale and humid air, reducing or preventing the growth of mould and mildew, and reducing the risk of respiratory problems.
Increases energy efficiency
The Solar Whiz increases energy efficiency by reducing the need for air conditioning and other cooling systems, thereby reducing your carbon footprint and your electricity bills.
Reduces condensation build-up
In winter, the Solar Whiz reduces condensation build-up in your roof space (and depending on how the system is installed) inside your house, preventing house structure damage caused by dampness,mould and mildew, ensuring a healthy living environment for you and your family.
Low noise level (40 - less than 60 dB)
The Solar Whiz solar roof vent features a highly efficient brushless DC motor, known for its energy-saving capabilities and efficiency levels of 80-95%. By eliminating energy loss associated with brush friction and heat, the brushless motor maximizes energy efficiency.
With a noise level of <40 and <45 dB, the Solar Whiz SW-AU-R 15 and 28 models provide a quiet environment suitable for users who may be sensitive to noise, making these an ideal choice for bedrooms, living rooms, and other indoor spaces. The brushless soft start motor ensures safe, reliable and efficient performance.
Durable and weather-resistant materials
The Solar Whiz is built with durable, corrosion-resistant, and weather-resistant materials, reducing the need for repairs or replacements, and saving you money in the long run.
Optional night kit
The Solar Whiz has an optional night kit that allows it to operate even at night when needed, ensuring that your space remains cool and ventilated around the clock, and giving you the flexibility to use it whenever you need it.
Versatile installation
The Solar Whiz can be installed on any type of roof, including tile, zincalume, and colorbond roofs, making it a versatile option for all kinds of roofs and buildings.
Tiltable solar panel
The Solar Whiz features a tiltable solar panel, which can be adjusted to optimize the angle to the sun’s rays, maximizing the system’s energy efficiency and overall performance. This feature also makes it easier to install the system in areas with varying levels of sunlight.
Easy to install
The Solar Whiz is easy to install, with a simple and straightforward installation process that can be completed in just a few hours.
Good warranty and after-sales support
The Solar Whiz offers a comprehensive warranty and excellent after-sales support, including technical support and online resources, ensuring you have the help you need when you need it.
Australian-made and operated
The Solar Whiz is Australian-made and operated ensuring the use of high-quality materials and top-notch customer service.
